MONORAIL carriage MR W

The MONORAIL MR 4S carriages have a new design, but still remain compatible as a complete system (carriage and guideway). Both carriages in the 4S design and previous carriage designs can be operated on the guide rails, which have remained unchanged by the new carriage design. The accessories have been modified and can be used for both 4S carriages and previous carriage designs.

The key design changes such as new redirection units (gray) for low-pulsation running, improved lubricant distribution with less leakage, a more robust front plate with stainless steel plates and four screw fastenings, replaceable cross wipers, and optimized longitudinal and cross wipers for even better sealing make the new MR 4S carriage more robust and reliable.

- Through-hardened bearing steel
- High rigidity due to rollers with logarithmic profile as rolling elements
- Large dynamic and static load-bearing capacity
- Very smooth running

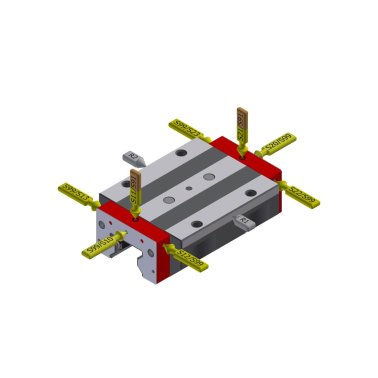

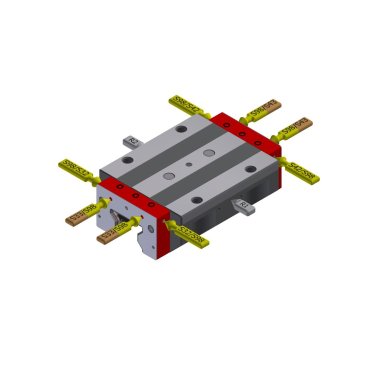

- Variety of lubrication options
- Maximum speed 3 m/s
- Maximum acceleration 50 m/s²
- Can be used at a working temperature of -40°C to + 80°C
- Construction condition 4S
