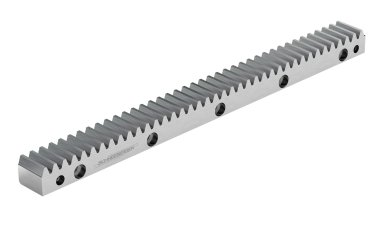

Cremagliere standard con dentatura dritta

Typ

ZST

Buildsize

4

Numero di materiale

575 501 494

Titolo del materiale

ZST M4-39 X 39 X 2010,6-G-I-6-D

Gearing

G (straight)

Hardness

I

Accuracy

Q6

Holes

D (with pin and fixing holes)

Material

C45

m

Module

4

ps

Face pitch (mm)

12,57

L1

Length (mm)

2010.6

z

Number of teeth

160

b

Width (mm)

39

hk

Head height (mm)

39

ho

Height of line of action (mm)

35

f

Chamfer (mm)

3

a

Starting hole spacing (mm)

62,8

l

Hole pitch (mm)

125,66

n

Number of holes

16

h

Height of hole (mm)

12

d1

Diameter of through-hole (mm)

10

d2

Countersink diameter (mm)

15

t

Countersind depth (mm)

9

a1

Distance of pinhole from star (mm)

37,5

l1

Distance between pinholes

1.935,6

d3

7,7

Peso (kg)

21,4

Cremagliere standard con dentatura dritta (575 501 494)
