Cremagliere standard con dentatura dritta

Typ

ZST

Buildsize

3

Numero di materiale

575 501 187

Titolo del materiale

ZST M3-29x29x1017,9-G-I-6-D

Gearing

G (straight)

Hardness

I

Accuracy

Q6

Holes

D (with pin and fixing holes)

Material

C45

m

Module

3

ps

Face pitch (mm)

9,42

L1

Length (mm)

1017.9

z

Number of teeth

108

b

Width (mm)

29

hk

Head height (mm)

29

ho

Height of line of action (mm)

26

f

Chamfer (mm)

2

a

Starting hole spacing (mm)

63,6

l

Hole pitch (mm)

127,23

n

Number of holes

8

h

Height of hole (mm)

9

d1

Diameter of through-hole (mm)

10

d2

Countersink diameter (mm)

15

t

Countersind depth (mm)

9

a1

Distance of pinhole from star (mm)

34,4

l1

Distance between pinholes

949,1

d3

7,7

Peso (kg)

7,7

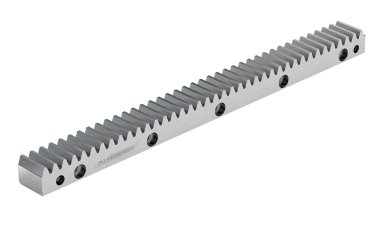

Cremagliere standard con dentatura dritta (575 501 187)
