Chariot MONORAIL

A	System height in mm	36
B	Carriage width in mm	70
B2	Distance between locating faces	23,5
C1	Position of center front lube hole	5,5
C3	Position of lateral lube hole	3,5
C4	Position of lateral lube hole	13
C7	Position of lateral lube hole	12
J	Carriage height	29,5
L	Carriage length	88
L1	Exterior fixing hole spacing	45
L2	Interior fixing hole spacing	40
L6	Steel body length	60
N	Lateral fixing hole spacing	57
O	Reference face height	7,5

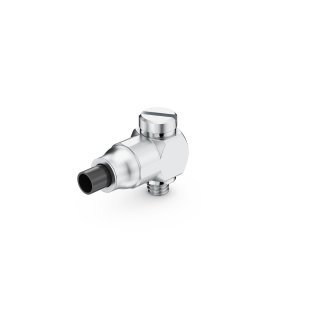

Élément #: 580 100 399

Prix non disponible

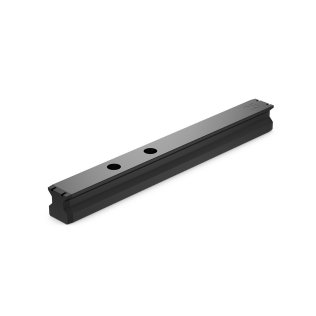

Élément #: 580 090 343

Prix non disponible

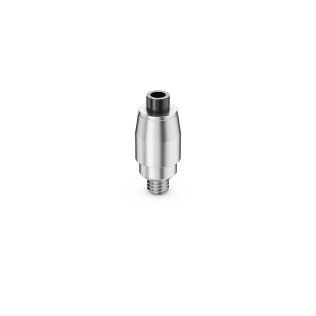

Élément #: 580 104 157

Prix non disponible

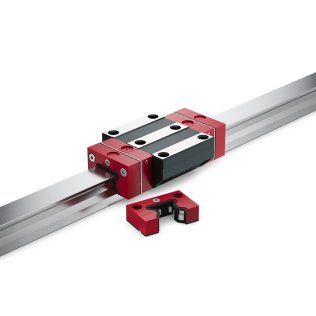

Élément #: 580 100 392

Prix non disponible

Élément #: 580 105 853

Prix non disponible

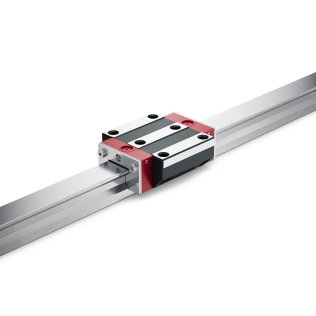

Élément #: 584 004 061

Prix non disponible

Élément #: 584 101 223

Prix non disponible

C0	Static load capacitiy (N)	49 800
C100	Dynamic load capacity (N)	27 700
M0Q	Static cross moment capacity (Nm)	733
M0L	Static longitud. moment capacity (Nm	476
MQ	Dyn. cross moment capacity (Nm)	408
ML	Dyn. longitud. moment capacity (Nm)	265
	Weight Rail (kg)	0,7

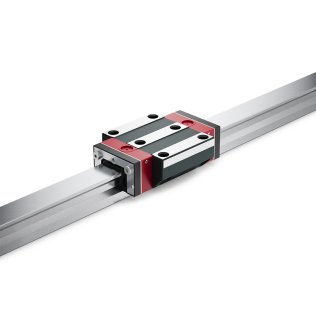

Chariot MONORAIL (MR-W-25-A-G3-V3-CN)
