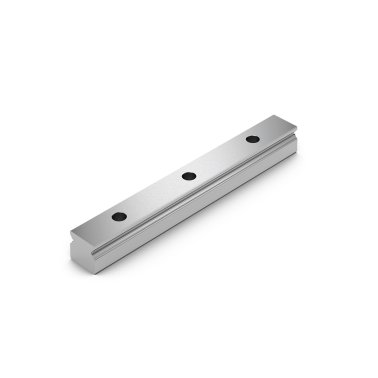

Rail MINIRAIL

B1	Rail width	15
J1	Rail height in mm	9,5
L3	Rail length in mm	995
	Diameter rail bore	3.5
g2	Step drilling height	5
	Countersink diameter of rail	6
L4	spacing of fixing holes	40
L5	position of first fixing hole	15
L10	position of last fixing hole	15
	Rail de poids (g/m)	996

B1

Rail width

15

J1

Rail height in mm

9,5

L3

Rail length in mm

995

Diameter rail bore

3.5

g2

Step drilling height

5

Countersink diameter of rail

6

L4

spacing of fixing holes

40

L5

position of first fixing hole

15

L10

position of last fixing hole

15

Rail de poids (g/m)

996

Rail MINIRAIL (MN 15-G3-V0)
