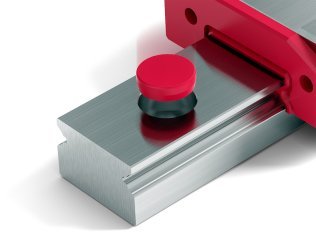

MINIRAIL rail

B1	Rail width	12
J1	Rail height in mm	7,5
L3	Rail length in mm	1000
	Diameter rail bore	3.5
g2	Step drilling height	3
	Countersink diameter of rail	6
L4	spacing of fixing holes	25
L5	position of first fixing hole	10
L10	position of last fixing hole	10
	Rail de poids (g/m)	598

B1

Rail width

12

J1

Rail height in mm

7,5

L3

Rail length in mm

1000

Diameter rail bore

3.5

g2

Step drilling height

3

Countersink diameter of rail

6

L4

spacing of fixing holes

25

L5

position of first fixing hole

10

L10

position of last fixing hole

10

Rail de poids (g/m)

598

MINIRAIL rail (MN 12-G3-V0)
