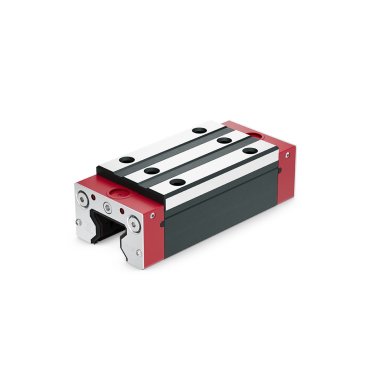

MONORAIL carriage (MR-W-55-D-G2-V1-CN)
Item #:
MR-W-55-D-G2-V1-CN
Availablity
Out of Stock
Typically ships within 4-6 weeks
| Material number | 580 107 480 | |
| Type (MONORAIL Carriage) | MR | |
| Carriage build form | D | |
| Buildsize | 55 | |
| Accuracy class | G2 | |
| Preload class | V1 | |
| Coating | CN |
| A | System height in mm | 80 |
| B | Carriage width in mm | 100 |
| B2 | Distance between locating faces | 23.5 |

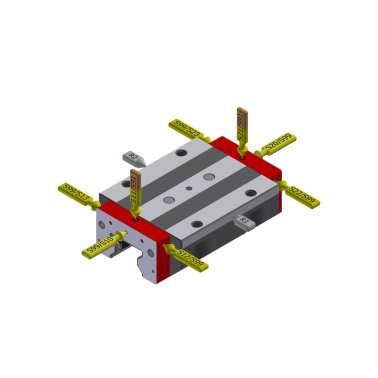

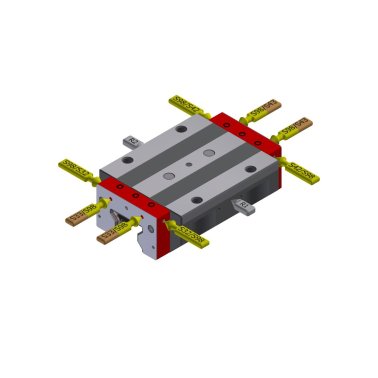

| C1 | Position of center front lube hole | 19 |
| C3 | Position of lateral lube hole | 19 |
| C4 | Position of lateral lube hole | 46.75 |
| C7 | Position of lateral lube hole | 42.5 |
| J | Carriage height | 67 |
| L | Carriage length | 214 |
| L1 | Exterior fixing hole spacing | 95 |
| L6 | Steel body length | 162 |
| N | Lateral fixing hole spacing | 75 |
| O | Reference face height | 12 |
| C0 | Static load capacitiy (N) | 324,000 |
| C100 | Dynamic load capacity (N) | 180,500 |
| M0Q | Static cross moment capacity (Nm) | 10,624 |
| M0L | Static longitud. moment capacity (Nm | 8,745 |
| MQ | Dyn. cross moment capacity (Nm) | 5,919 |
| ML | Dyn. longitud. moment capacity (Nm) | 4,872 |
| Weight Rail (kg) | 6.1 |
