Products
/
MONORAIL MR
/
MONORAIL MR carriage
/
MONORAIL carriage
MONORAIL carriage
(
MR-W-25-A-G3-V3-CN
)
Item #:
MR-W-25-A-G3-V3-CN
Reference side
Greasing option
*
S91
S98
S99
Greasing
*
LN: Oil-Protection Teresstic T32
LV: Full greasing Divinol Lithogrease G421
Internal order processing
*
Standard
Express
Availablity
In Stock
Available 38 Items
Show price
Material number
580 107 401
Type (MONORAIL Carriage)
MR
Carriage build form
A
Buildsize
25
Accuracy class
G3
Preload class
V3
Coating
CN
A
System height in mm
36
B
Carriage width in mm
70
B2
Distance between locating faces
23.5
C1
Position of center front lube hole
5.5
C3
Position of lateral lube hole
3.5
C4
Position of lateral lube hole
13
C7
Position of lateral lube hole
12
J
Carriage height
29.5
L
Carriage length
88
L1
Exterior fixing hole spacing
45
L2
Interior fixing hole spacing
40
L6
Steel body length
60
N
Lateral fixing hole spacing
57
O
Reference face height
7.5
C0
Static load capacitiy (N)
49,800
C100
Dynamic load capacity (N)
27,700
M0Q
Static cross moment capacity (Nm)
733
M0L
Static longitud. moment capacity (Nm
476
MQ
Dyn. cross moment capacity (Nm)
408
ML
Dyn. longitud. moment capacity (Nm)
265
Weight Rail (kg)
0.7
Related Products
Additional wiper ZCV 25
Item #:
580 100 399
Price not available
Metal wiper ASM 25
Item #:
580 090 343
Price not available

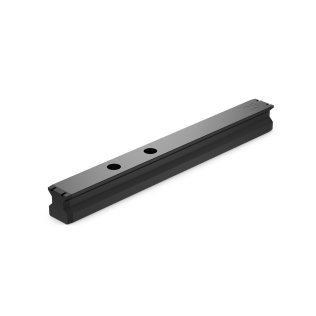

Assembly rail MRM 25
