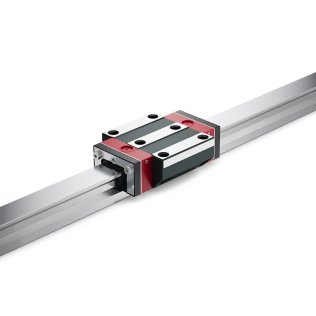

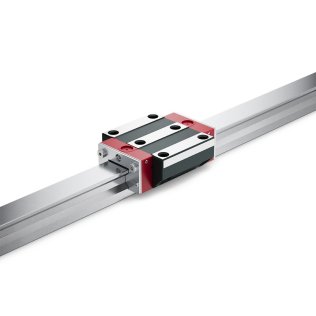

MONORAIL carriage (MR-W-65-P-G0-V3-CN)
Item #:
MR-W-65-P-G0-V3-CN
Availablity
Out of Stock
Typically ships within 4-6 weeks
| Material number | 580 107 503 | |
| Type (MONORAIL Carriage) | MR | |
| Carriage build form | P | |
| Buildsize | 65 | |
| Accuracy class | G0 | |
| Preload class | V3 | |
| Coating | CN |
| A | System height in mm | 90 |
| B | Carriage width in mm | 170 |
| B2 | Distance between locating faces | 53.5 |
| C1 | Position of center front lube hole | 13 |
| C3 | Position of lateral lube hole | 13 |
| C4 | Position of lateral lube hole | 48.5 |
| C7 | Position of lateral lube hole | 44.5 |
| J | Carriage height | 76.2 |
| L | Carriage length | 331 |
| L1 | Exterior fixing hole spacing | 200 |
| L2 | Interior fixing hole spacing | 200 |
| L6 | Steel body length | 272 |
| N | Lateral fixing hole spacing | 142 |
| O | Reference face height | 15 |
| C0 | Static load capacitiy (N) | 748,200 |
| C100 | Dynamic load capacity (N) | 366,000 |
| M0Q | Static cross moment capacity (Nm) | 29,479 |
| M0L | Static longitud. moment capacity (Nm | 32,300 |
| MQ | Dyn. cross moment capacity (Nm) | 14,429 |
| ML | Dyn. longitud. moment capacity (Nm) | 15,800 |
| Weight Rail (kg) | 20.3 |
