MONORAIL BM
/
MONORAIL BM rail
/
MONORAIL Rail BM S
MONORAIL Rail BM S
(
BM-S-45-NU-G3-CN
)
Item #:
BM-S-45-NU-G3-CN
Reference side
L5/L10
Internal order processing
*
Standard
Express
Availablity
In Stock
Typically ships within 3-5 days
Show price
Material number
584 003 619
Type (MONORAIL Carriage)
BM
Rail build form
NU
Buildsize
45
Accuracy class
G3
Straightness
KC
Coating
CN

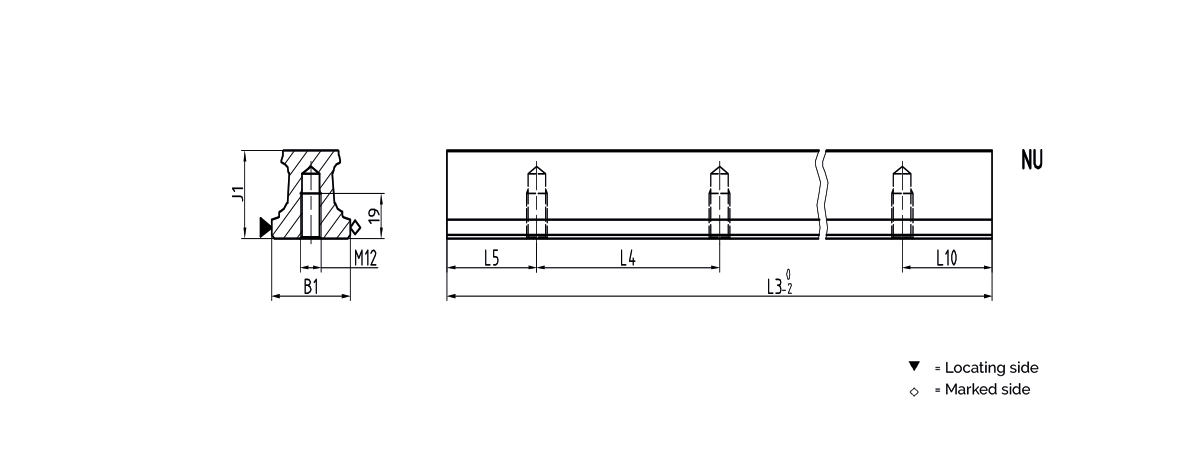

B1
Rail width
45
J1
Rail height in mm
37
L3
Rail length in mm
3000
L4
spacing of fixing holes
105
L5
position of first fixing hole
51
L10
position of last fixing hole
51
L5/L10
position of firs/last fixing hole (min)
12
L5/L10
position of firs/last fixing hole (max)
86
Weight Rail (kg/m)
9.3
