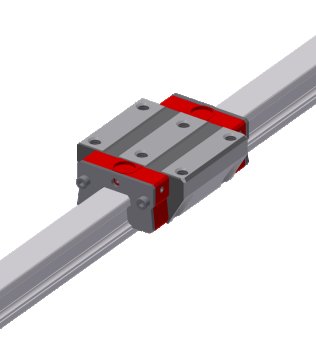

MONORAIL carriage (BM-W-45-D-G1-V0-CN)
Item #:
BM-W-45-D-G1-V0-CN
Availablity
Out of Stock
Typically ships within 4-6 weeks
| Material number | 584 104 912 | |
| Type (MONORAIL Carriage) | BM | |
| Carriage build form | D | |
| Buildsize | 45 | |
| Accuracy class | G1 | |
| Preload class | V0 | |
| Coating | CN |
| A | System height in mm | 70 |
| B | Carriage width in mm | 86 |
| B2 | Distance between locating faces | 20.5 |
| C1 | Position of center front lube hole | 18 |
| C3 | Position of lateral lube hole | 18 |
| C4 | Position of lateral lube hole | 36.8 |
| C7 | Position of lateral lube hole | 32.8 |
| J | Carriage height | 60.8 |
| L | Carriage length | 168.9 |
| L1 | Exterior fixing hole spacing | 80 |
| L6 | Steel body length | 130.6 |
| N | Lateral fixing hole spacing | 60 |
| O | Reference face height | 19 |
| C0 | Static load capacitiy (N) | 176,300 |
| C100 | Dynamic load capacity (N) | 74,700 |
| M0Q | Static cross moment capacity (Nm) | 4,175 |
| M0L | Static longitud. moment capacity (Nm | 4,199 |
| MQ | Dyn. cross moment capacity (Nm) | 1,769 |
| ML | Dyn. longitud. moment capacity (Nm) | 1,779 |

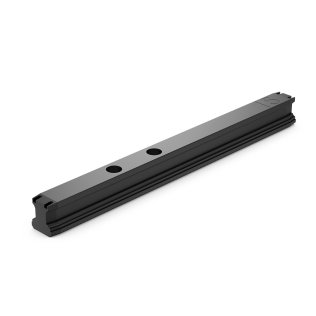

| Weight Rail (kg) | 4.3 |
