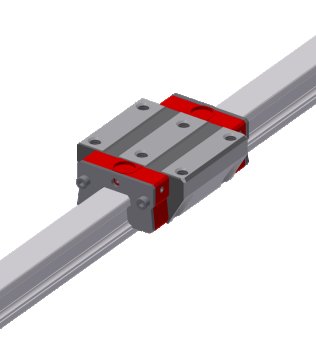

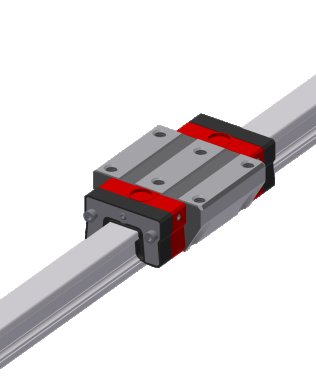

MONORAIL carriage (BM-W-35-A-G0-V3-CN)
Item #:
BM-W-35-A-G0-V3-CN
Availablity
In Stock
Available 12 Items
Typically ships within 3-5 days
| Material number | 584 104 872 | |
| Type (MONORAIL Carriage) | BM | |
| Carriage build form | A | |
| Buildsize | 35 | |
| Accuracy class | G0 | |
| Preload class | V3 | |
| Coating | CN |
| A | System height in mm | 48 |
| B | Carriage width in mm | 100 |
| B2 | Distance between locating faces | 33 |
| C1 | Position of center front lube hole | 7 |
| C3 | Position of lateral lube hole | 7 |
| C4 | Position of lateral lube hole | 18.3 |
| C7 | Position of lateral lube hole | 15.8 |
| J | Carriage height | 41 |
| L | Carriage length | 111.9 |
| L1 | Exterior fixing hole spacing | 62 |
| L2 | Interior fixing hole spacing | 52 |
| L6 | Steel body length | 79.6 |
| N | Lateral fixing hole spacing | 82 |
| O | Reference face height | 8.5 |
| C0 | Static load capacitiy (N) | 84,400 |
| C100 | Dynamic load capacity (N) | 38,700 |
| M0Q | Static cross moment capacity (Nm) | 1,566 |
| M0L | Static longitud. moment capacity (Nm | 1,252 |
| MQ | Dyn. cross moment capacity (Nm) | 718 |
| ML | Dyn. longitud. moment capacity (Nm) | 574 |
| Weight Rail (kg) | 1.8 |
