MONORAIL carriage (BM-W-30-E-G0-V1-CN)

Item #: BM-W-30-E-G0-V1-CN

Reference side

Greasing option *

Greasing *

Internal order processing *

Availablity

Out of Stock

Typically ships within 4-6 weeks

The product is not in stock. Please contact us for info.

	Material number	584 104 847
	Type (MONORAIL Carriage)	BM
	Carriage build form	E
	Buildsize	30
	Accuracy class	G0
	Preload class	V1
	Coating	CN

A	System height in mm	42
B	Carriage width in mm	62
B2	Distance between locating faces	17
C1	Position of center front lube hole	10
C3	Position of lateral lube hole	10
C4	Position of lateral lube hole	22.2
C7	Position of lateral lube hole	21.7
J	Carriage height	38.9
L	Carriage length	97.6
L1	Exterior fixing hole spacing	40
L2	Interior fixing hole spacing	40
L6	Steel body length	69.4
O	Reference face height	17

C0	Static load capacitiy (N)	63,700
C100	Dynamic load capacity (N)	29,200
M0Q	Static cross moment capacity (Nm)	1,084
M0L	Static longitud. moment capacity (Nm	829
MQ	Dyn. cross moment capacity (Nm)	497
ML	Dyn. longitud. moment capacity (Nm)	380
	Weight Rail (kg)	1

MONORAIL carriage (BM-W-30-E-G0-V1-CN)

Related Products

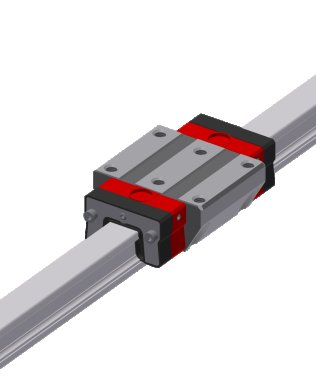

Additional wiper ZBV 30

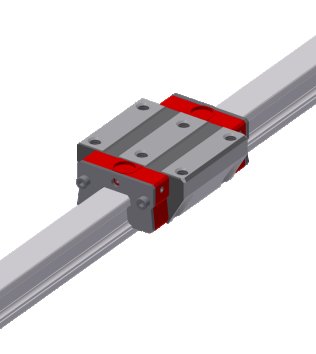

Metal wiper ABM 30
