MONORAIL carriage (BM-W-25-E-G0-V3-CN)

Item #: BM-W-25-E-G0-V3-CN

Reference side

Greasing option *

Greasing *

Internal order processing *

Availablity

Out of Stock

Typically ships within 4-6 weeks

The product is not in stock. Please contact us for info.

	Material number	584 104 815
	Type (MONORAIL Carriage)	BM
	Carriage build form	E
	Buildsize	25
	Accuracy class	G0
	Preload class	V3
	Coating	CN

A	System height in mm	40
B	Carriage width in mm	57
B2	Distance between locating faces	17
C1	Position of center front lube hole	9.5
C3	Position of lateral lube hole	9.5
C4	Position of lateral lube hole	18.8
C7	Position of lateral lube hole	18.5
J	Carriage height	34.5
L	Carriage length	84.9
L1	Exterior fixing hole spacing	35
L2	Interior fixing hole spacing	35
L6	Steel body length	59.5
O	Reference face height	15

C0	Static load capacitiy (N)	46,100
C100	Dynamic load capacity (N)	21,100
M0Q	Static cross moment capacity (Nm)	631
M0L	Static longitud. moment capacity (Nm	513
MQ	Dyn. cross moment capacity (Nm)	289
ML	Dyn. longitud. moment capacity (Nm)	235
	Weight Rail (kg)	0.7

MONORAIL carriage (BM-W-25-E-G0-V3-CN)

Related Products

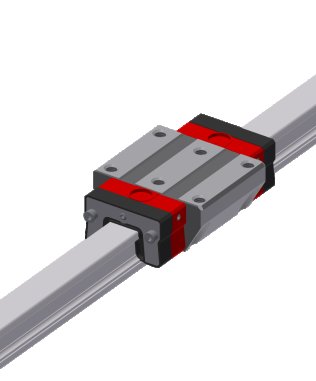

Additional wiper ZBV 25

Metal wiper ABM 25

Lubrication plate Lubrication plate SPL 25-BM

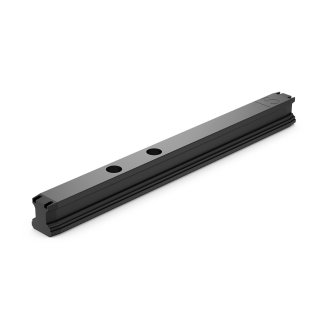

Assembly rail MBM 25
