MINIRAIL rail
- Stainless steel, through-hardened
- Process reliability thanks to superior design
- Low risk of contamination thanks to tight clearance between the carriage and guideway
- Precise, robust, strength
- The range includes the standard rail widths of 7, 9, 12 and 15 as well as wider widths of 14, 18, 24 and 42.
- Available in two accuracy classes (G1 and G3)
- Configurable rail lengths
- Gothic arc profile of the guideway tracks allows high load capacities
- Process reliability thanks to superior design
- Low risk of contamination thanks to tight clearance between the carriage and guideway
- Precise, robust, strength
- The range includes the standard rail widths of 7, 9, 12 and 15 as well as wider widths of 14, 18, 24 and 42.
- Available in two accuracy classes (G1 and G3)
- Configurable rail lengths
- Gothic arc profile of the guideway tracks allows high load capacities

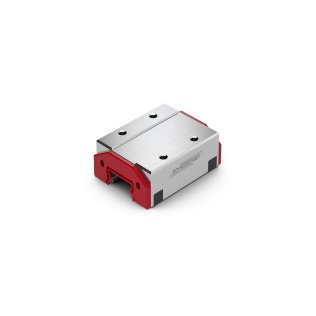

MINIRAIL carriage
- Stainless steel, through hardened
- Process reliability thanks to superior design
- Speeds up to 5 m/s and acceleration up to 300 m/s2
- The precisely finished carriages can be interchanged as desired
- Low risk of contamination thanks to tight clearance between the carriage and guideway
- Low travel pulsation thanks to optimally shaped ball recirculation
- Vacuum-compatible down to 10-7 mbar
- Temperature range -40 °C to + 80°C
- Available in four lengths: MNNS (short), MNN (standard), MNNL (long) and MNNXL (extra long)
- Process reliability thanks to superior design
- Speeds up to 5 m/s and acceleration up to 300 m/s2
- The precisely finished carriages can be interchanged as desired
- Low risk of contamination thanks to tight clearance between the carriage and guideway
- Low travel pulsation thanks to optimally shaped ball recirculation
- Vacuum-compatible down to 10-7 mbar
- Temperature range -40 °C to + 80°C
- Available in four lengths: MNNS (short), MNN (standard), MNNL (long) and MNNXL (extra long)
plastic cap
- Suitable for closing and sealing the rail holes
- To prevent the accumulation of dirt
- Manual installation with simple means
- MINIRAIL accessories
- To prevent the accumulation of dirt
- Manual installation with simple means
- MINIRAIL accessories
