Products
/
Frictionless tables
/

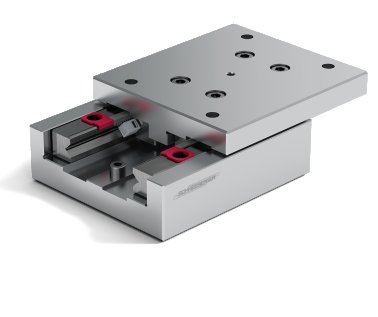

Frictionless table NKL 1-65
Frictionless table NKL 1-65
(
570 800 632
)
Item #:
570 800 632
Internal order processing
*
Standard
Express
Availablity
In Stock
Typically ships within 3-5 days
Show price
Material number
570 800 632
Material title
NKL 1-65
Material
Aluminium
Buildsize
1
A
System height
13
B
System width
30
Dw
Rolling element diameter
1.5
H
Stroke
40
L
System length
65
L2
Distance to bottom mounting row
10
*L6
Attachment hole start/end spacing (top)
12.5
L7
Attachment hole start/end spacing (down)
3.5
b2
Distance mounting hole bottom transverse
22
b3
Distance mounting hole front side
10
d
Diameter countersink hole
4.1
d1
Diameter bore
2.55
d2
Thread
M2
h
Height flange
4.1
h1
Depth bore hole
1.6
Dimension t
4.5
C/C100 in N
650
Weight(kg)
0.09
