Products
/
Frictionless tables
/

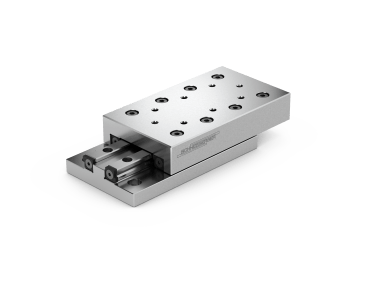

Frictionless table NK 3-55-B
Frictionless table NK 3-55-B
(
570 890 109
)
Item #:
570 890 109
Internal order processing
*
Standard
Express
Availablity
In Stock
Typically ships within 3-5 days
Show price
Material number
570 890 109
Material title
NK 3-55-B
Material
Gusseisen
Buildsize
3
A
System height
28
B
System width
60
Dw
Rolling element diameter
3
H
Stroke
30
L
System length
55
L2
Distance to bottom mounting row
25
*L6
Attachment hole start/end spacing (top)
27.5
L7
Attachment hole start/end spacing (down)
10
b2
Distance mounting hole bottom transverse
40
b3
Distance mounting hole front side
40
*b4
Distance mounting hole above transverse
25
d
Diameter countersink hole
7.5
d1
Diameter bore
4.5
d2
Thread
M3
*d3
Thread (top)
M4
h
Height flange
9
h1
Depth bore hole
4.5
n
Mounting hole above front side
5.5
Dimension t
10.5
C/C100 in N
910
Weight(kg)
0.57
