Products
/
Frictionless tables
/

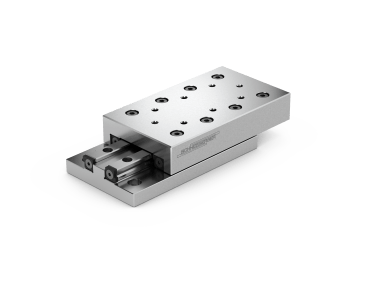

Frictionless table NK 2-65-B
Frictionless table NK 2-65-B
(
570 801 239
)
Item #:
570 801 239
Internal order processing
*
Standard
Express
Availablity
In Stock
Typically ships within 3-5 days
Show price
Material number
570 801 239
Material title
NK 2-65-B
Material
Stahl
Buildsize
2
A
System height
21
B
System width
40
Dw
Rolling element diameter
2
H
Stroke
40
L
System length
65
L2
Distance to bottom mounting row
15
*L6
Attachment hole start/end spacing (top)
17.5
L7
Attachment hole start/end spacing (down)
5
b2
Distance mounting hole bottom transverse
30
b3
Distance mounting hole front side
16
*b4
Distance mounting hole above transverse
15
d
Diameter countersink hole
6
d1
Diameter bore
3.5
d2
Thread
M2
*d3
Thread (top)
M3
h
Height flange
6.5
h1
Depth bore hole
3
n
Mounting hole above front side
3.4
Dimension t
8
C/C100 in N
850
Weight(kg)
0.34
