Products
/
Frictionless tables
/

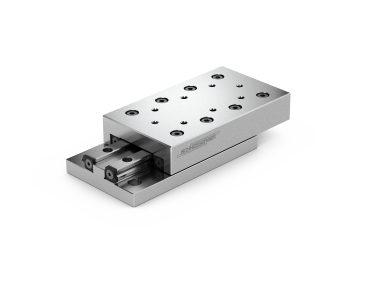

Frictionless table NK 1-55-B
Frictionless table NK 1-55-B
(
570 890 050
)
Item #:
570 890 050
Internal order processing
*
Standard
Express
Availablity
In Stock
Typically ships within 3-5 days
Show price
Material number
570 890 050
Material title
NK 1-55-B
Material
Stahl
Buildsize
1
A
System height
17
B
System width
30
Dw
Rolling element diameter
1.5
H
Stroke
32
L
System length
55
L2
Distance to bottom mounting row
10
*L6
Attachment hole start/end spacing (top)
12.5
L7
Attachment hole start/end spacing (down)
3.5
b2
Distance mounting hole bottom transverse
22
b3
Distance mounting hole front side
12
*b4
Distance mounting hole above transverse
10
d
Diameter countersink hole
4.4
d1
Diameter bore
2.55
d2
Thread
M2
*d3
Thread (top)
M2
h
Height flange
5.5
h1
Depth bore hole
3
n
Mounting hole above front side
2.5
Dimension t
7
C/C100 in N
550
Weight(kg)
176
