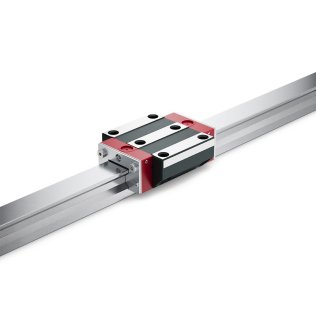

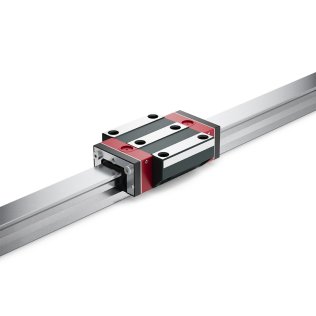

MONORAIL carriage (MR-W-30-C-G1-V1-CN)
Item #:
MR-W-30-C-G1-V1-CN
Availablity
Out of Stock
Typically ships within 4-6 weeks
| Material number | 580 107 426 | |
| Type (MONORAIL Carriage) | MR | |
| Carriage build form | C | |
| Buildsize | 30 | |
| Accuracy class | G1 | |
| Preload class | V1 | |
| Coating | CN |
| A | System height in mm | 45 |
| B | Carriage width in mm | 60 |
| B2 | Distance between locating faces | 16 |
| C1 | Position of center front lube hole | 9 |
| C3 | Position of lateral lube hole | 9 |
| C4 | Position of lateral lube hole | 22 |
| C7 | Position of lateral lube hole | 22 |
| J | Carriage height | 38.5 |
| L | Carriage length | 108 |
| L1 | Exterior fixing hole spacing | 40 |
| L6 | Steel body length | 70 |
| N | Lateral fixing hole spacing | 40 |
| O | Reference face height | 8 |
| C0 | Static load capacitiy (N) | 74,900 |
| C100 | Dynamic load capacity (N) | 39,500 |
| M0Q | Static cross moment capacity (Nm) | 1,332 |
| M0L | Static longitud. moment capacity (Nm | 966 |
| MQ | Dyn. cross moment capacity (Nm) | 702 |
| ML | Dyn. longitud. moment capacity (Nm) | 510 |
| Weight Rail (kg) | 0.9 |
